Transformer ALLIANCE XF150PRO Watt (12-15v) taps

Transformer ALLIANCE XF150PRO Watt (12-15v) taps

Your Price

Original price was: $509.99.Current price is: $325.00. / ea.

1 in stock

SKU: LLTRALXF0150PRO Categories: ,

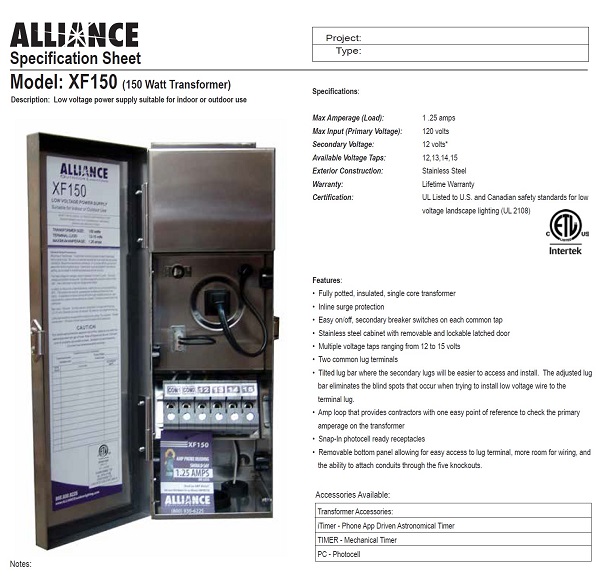

Description

Transformer Size: 150 watts
Contains iTimerPRO
Max Amperage (Load): 1.25 amps
Max Input (Primary Voltage): 120 volts
Secondary Voltage: 12-18 volts*
Available Voltage Taps: 12, 13, 14, 15
Exterior Construction: Stainless Steel
Warranty: Lifetime Warranty

Features:
Fully potted, insulated, single core transformer
Inline surge protection
Easy on/off, secondary breaker switches on each common tap

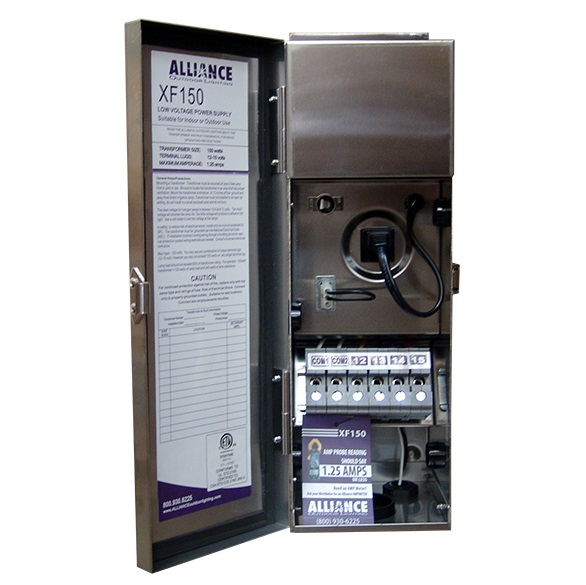

Stainless steel cabinet with removable and lockable latched door
Multiple voltage taps ranging from 12 to 15 volts
Two common lug terminals
Tilted lug bar where the secondary lugs will be easier to access and install. The adjusted lug
bar eliminates the blind spots that occur when trying to install low voltage wire to the
terminal lug.
Amp loop that provides contractors with one easy point of reference to check the primary
amperage on the transformer
Snap-In photocell ready receptacles
Removable bottom panel allowing for easy access to lug terminal, more room for wiring, and
the ability to attach conduits through the five knockouts.

iTimer:
Features:
-Astronomical timer
-Bluetooth device
-App driven
-External antenna
-Internal power meter
-Input – 120VAC, 15A
