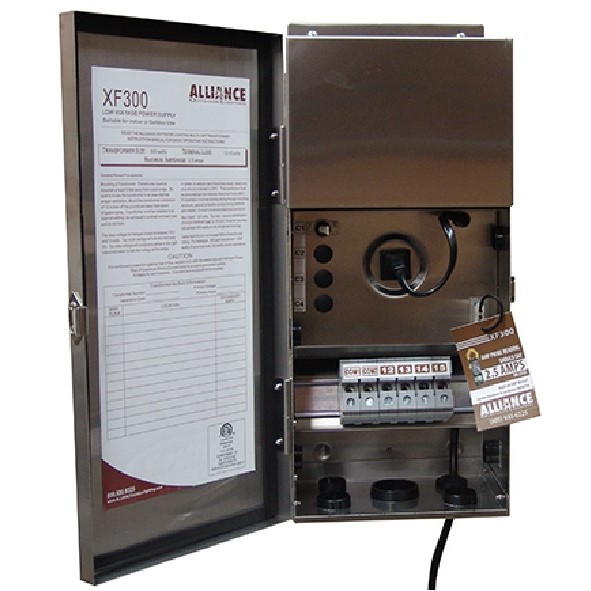

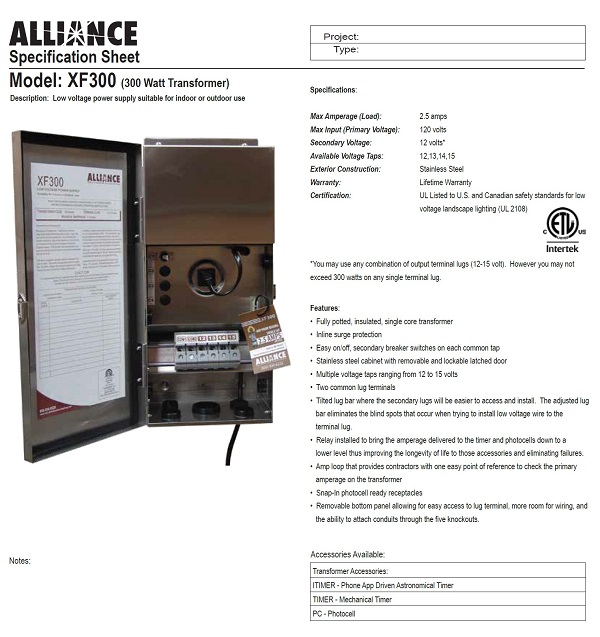

Transformer ALLIANCE XF 300 Watt (12-15v) taps

Transformer ALLIANCE XF 300 Watt (12-15v) taps

Your Price

$429.99 / ea.

2 in stock

SKU: LLTRALXF0300 Categories: ,

Description

Features:
Transformer Size: 300 watts
Max Amperage (Load): 2.5 amps
Max Input (Primary Voltage): 120 volts
Secondary Voltage: 12-18 volts*
Available Voltage Taps: 12, 13, 14, 15
Exterior Construction: Stainless Steel
Warranty: Lifetime Warranty

Features:
o Fully potted, insulated, single core transformer
o Inline surge protection
o Easy on/off, secondary breaker switches on each common tap
o Stainless steel cabinet with removable and lockable latched door
o Multiple voltage taps ranging from 12 to 15 volts
o Two common lug terminals
o Tilted lug bar where the secondary lugs will be easier to access and install. The adjusted lug
bar eliminates the blind spots that occur when trying to install low voltage wire to the
terminal lug.
o Amp loop that provides contractors with one easy point of reference to check the primary
amperage on the transformer
o Snap-In photocell ready receptacles
o Removable bottom panel allowing for easy access to lug terminal, more room for wiring, and
the ability to attach conduits through the five knockouts.
